Aerosol Particle Size Analytics Service
The first and only aerosol analytics service provider in Hong Kong with a laser light particle size analyzer for 0.5 to 150 µm (microns) distribution analysis.
Laser Light Scattering for Aerosol Size Distribution Analysis
Laser light scattering is a proven technique to analyze the size distribution of fine particles. And aerosols are suspensions of solid or liquid particles in a gas, such as air.
When a laser beam passes through fine particles, the laser beam is scattered into different angles according to the particle sizes. A larger particle scatter light at small angles relative to the laser beam and small particles scatter light at large angles. Particle size is then determined from the variation of light intensity of the scattered light as a function of scattering angle.
Through an array of analysis, the mass/volume distribution of droplet diameters, numerical distribution of droplet diameters (D10, D50 and D90, which represents the point on the cumulative size distribution curve below 10%, 50% and 90%, respectively) and the mean droplet diameter based on the well-known Rosin-Rammler method can be obtained.
What can an Aerosol Particle Size Analysis Tell Us?
Aerosol particle size analyzers can typically provide real-time measurement of particles ranging from a few nanometers to several micrometers in diameter. The range of our particle size measurement is between 0.5 to 150µm. Along with the software that enables data visualization, such as particle size distribution graphs and statistical analysis. Data can usually be exported in various formats for further analysis or reporting.
1. Particle Size Distribution
Median particle size (D50)
Particle size at any cumulative percentage (e.g., D10, D90)
Percentage of particles smaller than a given size
Percentage of particles larger than a given size
Relative distribution width (span)
Presence of multiple particle size populations
Comparison of different particle size distributions

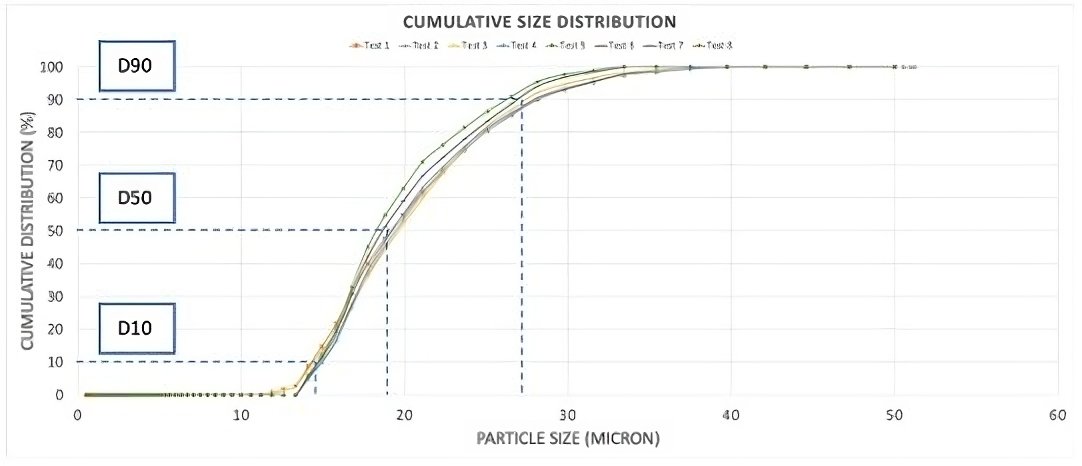

2. Cumulative Size Distribution
Quality control and consistency of particle size
Compliance with particle size specifications
Insights into particle behavior and properties
3. Comparison of Performance
Aerosol particle size analytics are used in a wide range of applications, such as:
Air quality monitoring and pollution studies
Atmospheric research and climate studies
Cleanroom monitoring in pharmaceutical and semiconductor industries
Inhalation toxicology and drug delivery studies
Nanoparticle research and characterization
Powder technology and materials science
By providing detailed information on particle size distribution, aerosol particle size analyzers help researchers and professionals better understand and control aerosol properties, leading to improved processes, products, and environmental management.
